Youcan 45-100T Tipper Trailer (复制)
Yuchang Trailer supplies 45-100 ton tipper trailers precisely tailored to your company’s requirements. Tipper Trailer, professional tipper trailers, dumper trailers.
Model:
YCH9401ZHX YCH9402ZHX
Material:
Carbon Steel
Volume:
45-75m3
Overall dimension:
10m *2.5m* 4m 10.5m *2.5m* 4m
Loading capacity:
45-160Ton

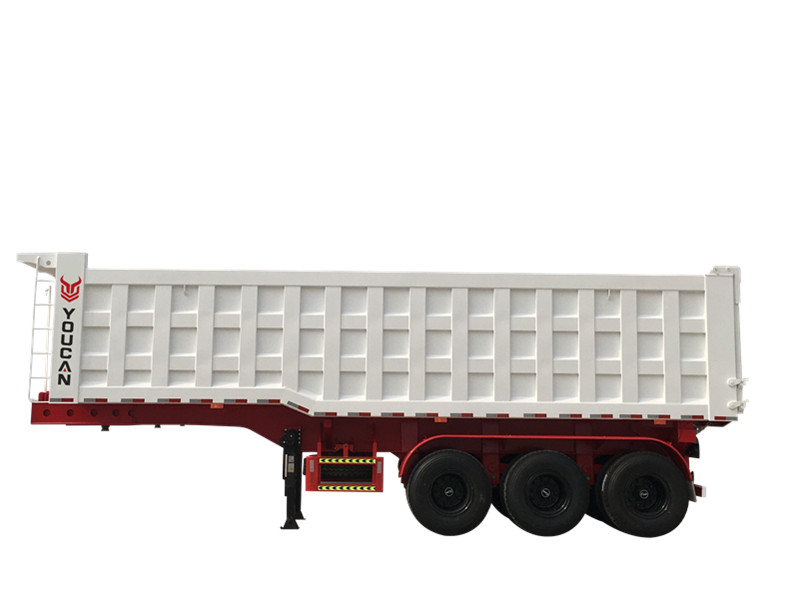

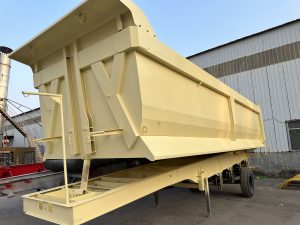

Overview of Tipper trailer
According to the product requirements for the users who transport solid aggregate, coal, earthmoving, asphalt, wheat and similar bulk cargoes to the highways, we offer a wide selection of tippers that challenge the most demanding conditions on the truck and trailer product line, which provides great convenience and practicality during unloading. The low centre of gravity of the trailer gives it improved road handling combined with excellent tipping stability.
The Yuchang LIGHT tipper trailers with its low unladen weight is optimised for payload thanks to its high strength steel box body.
The Youcan SOLID tipper trailers with their high strength steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.
Features of Yuchang Tipper trailers
1.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.
2. The Youcan tipper body is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.
3. The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be RAL9003 or will on customer demand. The total thickness of the paint work is 120micron.
4. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.
5. Optimised body structure prevents goods from sticking.
Tipper trailer Supplier
Yuchang Trailer is a professional truck trailer manufacturer providing complete trailer solutions for almost all types of trailers on different applications. The company specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!
Specification
| Name | Youcan Tipper semi-trailers |
| Model | YCH9401Z YCH9402Z |
| Volume | 45-75m3 |
| Overall dimension | 10m,10.5m *2.5m* 4m |
| Loading capacity | 45-160Ton |
| Tank thickness(mm) | Body is 3-8mm . |
| Main beam | middle plate is 8-16mm. Q700 |
| Axle brand and number | 13T/16T/20T BPW/FUWA, 2/3/4 Axles |
| Kingpin | 50# or 90# |
| Steel Spring | 10*13*90mm 10*16*90mm 12*16*120mm |
| Suspension system | Mechanical suspension |
| Tyre | 12R22.5 / 12.00R20 |
| Landing gear | 28T, double speed operation |
| ABS Brake System | Kormee/WABCO brand, 2S2M |
| Brake system | Dual Line braking system , |
| Brake air chamber | Four double chamber Two single |
| Electrical system | 24V,7 pin socket,One set 6-core standard Cable |
| Light | Tail lamp with turn signal, brake light & reflector, |
| side lamp etc | |
| Tool box | 1 set |
| Spare tire carrier | 1 sets |
| Painting | Sand shot blasting process with grit metal. 2 coats of epoxy primer and acrylic finished paint will on customer demand. The total thickness of the paint work is 120micron. |
| Packing | Polish with wax before shipping |
